Carbon Steel Pipe
Created with Pixso.

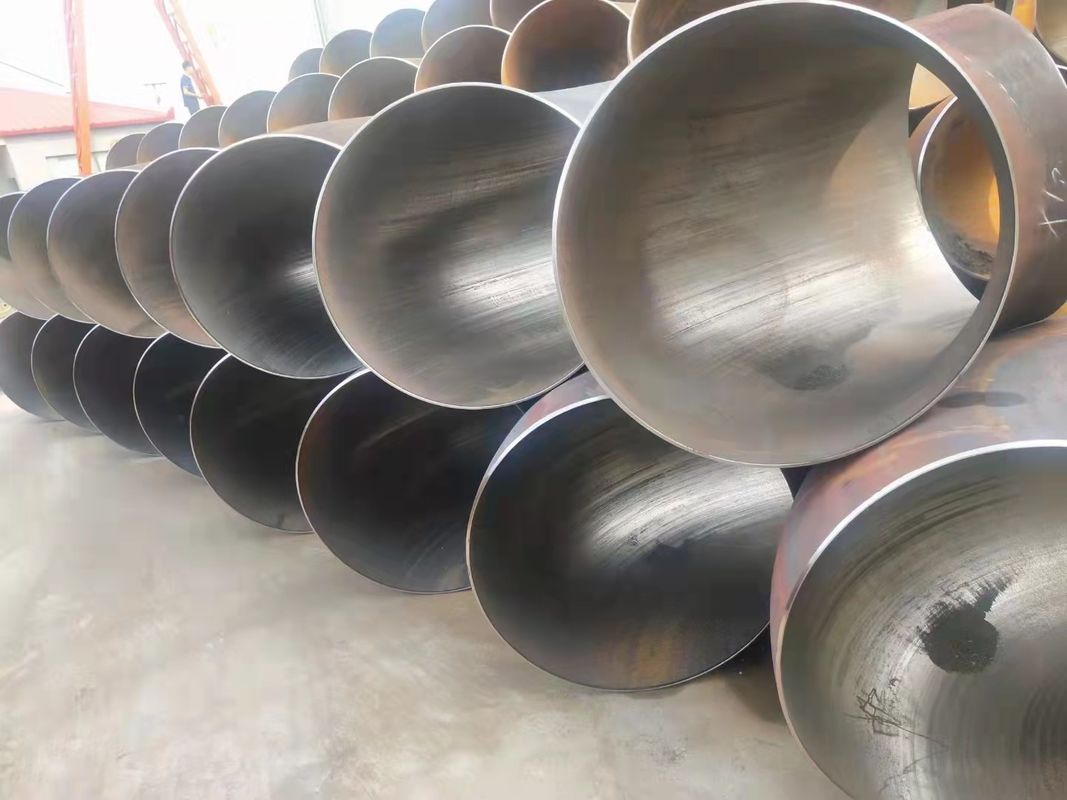

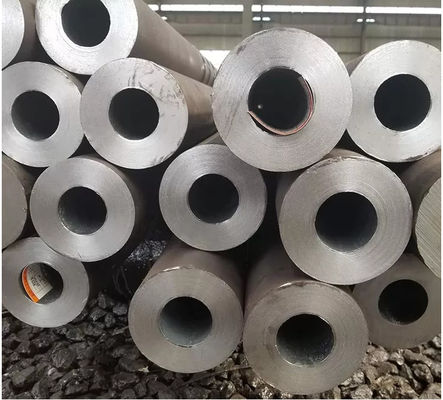

Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe

Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe

Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe

Brand Name: TISCO, BAOSTEEL
MOQ: 1 ton
Price: to be negotiated
Supply Ability: 5000 Ton/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, SGS, BV
Name:
ASTM A106 Seamless Carbon Steel Pipe
Standard:
AISI, ASTM, GB, JIS, DIN, BS
Alloy Or Not::
Alloy
Surface:
Surface Treatment:
Processing Service:
Welding, Cutting
Special Pipe:
API Pipe, Other, EMT Pipe, Thick Wall Pipe
Thickness:
1.5 - 50 Mm
Grade:
Carbon
Packaging Details:
Standard Packing, or Per customer requirements
Supply Ability:
5000 Ton/Month
Highlight:

610mm Seamless Carbon Steel Pipe

,

20mm Seamless Carbon Steel Pipe

,

MTC CS A106 Gr B Pipe

Product Description

ASTM A106 Seamless Carbon Alloy Steel Pipe



ASTM A106 Carbon Steel Pipe For High Temperature

ASTM A106 / ASME SA106 pipes are seamless carbon steel pipes used for high tempertaure applications (up to 750 degrees F). These pipes are widely used in the oil & gas, petrochemical, power generation and ship-building industries (examples: refineries, downstream plants, vessels. boilers and towers). A106 pipes are particulary suited whenever the trasported fluid has either high temperature or high pressure (or both combined).



ASTM A106 / SA106 pipes are available in size range from 1/2 to 28 inches, and in pipe schedules from 10 to 160. These pipes are supplied either in single random lenght (17-24') or double random lenght (36 -44').



In terms of material grades, A106 pipes are manufactured in grade A, B and C. NPS 1-1/2? and below are available in the hot finished or by cold drawn type. Pipes of NPS 2 inch and above are generally are hot rolled manufatured. A106 pipes are produced out of killed steel. The chemical composition and Machanical Property of the three grades of ASTM A106 is shown in the following table:



Chemical composition:

Chemical composition, %
Element C Mn P S Si Cr Cu Mo Ni V
max max max min max max max max max
A106 Grade A 0.25 0.27-0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
A106 Grade B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
A106 Grade C



Product Name
Carbon Steel Pipe
Standard
ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629
Outer Dia:
20mm-610mm
Wall Thickness
4mm-70mm
Dia Tolerance
Control with in the standard, OD:+-1%, WT:+-10%
Materials
10#,20#, 45#,16Mn,A106(B,C),A53(A,B),API J55,API K55,Q235,Q345,ST35.8,ST37,ST42,ST45,ST52
Inspection
ISO,BV,SGS,MTC
Packing
Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required
MOQ
5metric ton,sample order accepted
Shipment time
Within 7-10 workdays after receiving deposit





Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe 0



Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe 1



Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe 2

Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe 3

Dia 20mm-610mm Seamless Carbon Steel Pipe MTC CS A106 Gr B Pipe 4
