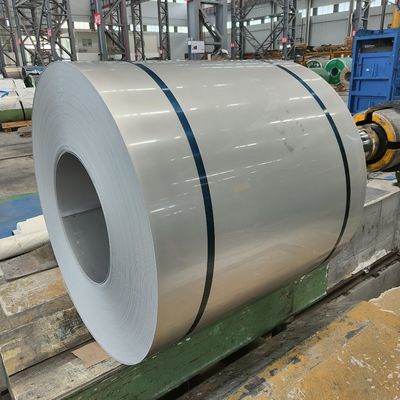

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness

Brand Name: Tisco
MOQ: 1 ton
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000 tons
Detail Information
Place of Origin:
China
Certification:
ISO, SGS, BV
Name:
TISCO 316 Stainless Steel Coil
Thickness:
0.1~16mm,or As Customer’s Requirements
Width:
10-2000mm Or As Customer’s Requirements
Surface Finish:
BA/2B/NO.1/NO.3/NO.4/8K/HL
Standard:
JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Chemical Equipment
Edge:
Mill Edge \ Slit Edge
Technique:
Hot Rolled Cold Rolled
Packaging Details:
Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Supply Ability:
5000 tons
Highlight:

Stainless Steel Coils 16mm

,

Chemical Equipment Stainless Steel Coils

,

16mm ss strip coil

Product Description

TISCO 316 Stainless Steel Coil By 2b Ba 2ba No.1 No.4 Hl 8k Mirror Surface Finish



Stainless steel is initially produced in slabs, which are then put through a conversion process using a Z mill, which converts the slab into coil prior to further rolling. These wide coils are typically made at around 1250mm (sometimes a little wider) and are known as 'mill edge coils'.

These wide coils are further processed using a range of manufacturing techniques such as slitting, where the wide coil is slit into a multitude of strands; this is where much of the confusion around the terminology comes in. After slitting, the stainless steel forms a batch of coils taken from the mother coil and these are referred to by many different names, including strip coils, slit coils, banding or simply strips.



Application



Escalator, Elevator, Doors

Furniture

Production tools, Kitchen appliances, freezers, cold rooms

Auto Parts

Machinery and Packaging

Equipment and Medical devices

Transport system



Stainless Steel Coil/Sheet/Plate Information


Technique

Surface Finish

Grade Series

Thickness(mm)
Width(mm)
Main Dimension
20-850
1000
1219
1240
1250
1500
Hot Rolled
No.1 / 2E
201/304/316L
2.2-12.0






Cold Rolled

2B
201/304/316L
0.25-3.0
410S/430
410S/430
0.25-3.0

No.4 /Hairline
Mirror / Linen
SB
201/304/316L
0.22-3.0
410S/430
410S/430
0.25-3.0

BA
201/304
0.2--1.8
410S/430
410S/430
0.25-3.0



2BA
304/410S/430
0.25-2.0





Chemical composition and mechanical properties of stainless steel coils

Grade
Chemical Composition (%)
Mechanical Performance
C
Si
Mn
P
S
Ni
Cr
Mo
Hardness
201
≤0.15
≤1.00
5.5/7.5
≤0.060
≤0.03
3.5/5.5
16.0/18.0
-
HB≤241,HRB≤100, HV≤240
304
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
8.0/11.0
18.0/20.0
-
HB≤187,HRB≤90,HV≤200
316
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
10.0/14.0
16.0/18.0
2.0/3.0
HB≤187,HRB≤90,HV≤200
316L
≤0.03
≤1.00
≤2.00
≤0.045
≤0.03
10.0/14.0
16.0/18.0
2.0/3.0
HB≤187,HRB≤90,HV≤200
410
≤0.15
≤1.00
≤1.25
≤0.060
≤0.03
≤0.060
11.5/13.5
-
HB≤183, HRB≤88 HV≤200
430
≤0.12
≤1.00
≤1.25
≤0.040
≤0.03
-
16.0/18.0
-
HB≤183, HRB≤88 HV≤200



TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 0

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 1

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 2



TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 3

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 4

TISCO Mirror Stainless Steel Coils For Chemical Equipment 0.1~16mm Thickness 5



FAQ

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?

A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc



Q: What are the shipping ports?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you

can choose other ports according to your needs.



Q: About product prices?

A:Prices vary from period to period due to cyclical changes in the price of raw materials.



Q: How long does your delivery time take?

A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely

large or special circumstances occur.



Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some

of the plants are not open to the public.



Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified

products will be destroyed.



Q: How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation

wooden pallet. It can effectively protect products from corrosion during ocean transportation.



Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,

we will reply to your inquiry during the next working day.
