Laser Scribed Silicon Steel Coil 0.35 Mm CRGO B23r090 For Electrical Machinery

Name: Laser Scribed Silicon Steel Coil 0.35 Mm CRGO B23r090 For Electrical Machinery
Brand: Jiangsu Baowu new Material Co., LTD
SKU: Baosteel CRGO Silicon Steel
Price: 332.00 USD
Availability: InStock

Brand Name:	Baosteel
Model Number:	Baosteel CRGO Silicon Steel
MOQ:	1 ton
Price:	Elaborate
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250 tons/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE AISI ASTM

Name:

Baosteel CRGO Silicon Steel

Grade:

B23G110, B23G100, B23P100, B23R095, B23R090

Surface Treatment:

Coated

Model Number:

B23R090

Tickness:

0.2 - 0.35 Mm

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Application:

Electrical Machinery

Standard:

JIS AISI ASTM

Packaging Details:

Wooden pallets and container

Supply Ability:

250 tons/week

Highlight:

Laser Scribed Silicon Steel Coil

B23r090 electrical steel coil

0.35 mm Silicon Steel Coil

Product Description

Baosteel CRGO B23r090 Laser Scribed Silicon Steel

Laser scribing is widely used to reduce core loss of grain-oriented silicon steel recently. The effect of stress annealing treatment on laser scribing product has been analyzed. It was found that as laser power increased, the core loss reduced and the damage to surface coating exacerbated. Reducing the laser scribing line spacing to a certain width can achieve low core loss. The core loss of laser domain refined product will increase after annealing at certain temperature.

Major Manufacturer	BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Grade	CRGO: 20ZDKH75, B20P075, B20P070, B18R070 B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90,23QG090, B23R080 27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095 30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105 35Q155, B35G155, 35Z155
Grade	CRNGO: B35A270, B35A250, B35A230, B35A300, 35WW270,35WW250,35WW230 B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Nominal thickness	0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm, 0.5mm
Coil ID	508mm
Weight	2MT~8MT
Standard	EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS
Form	Cold Rolled Strip
Delivery Lead Time	7~15 days after T/T prepayment or L/C date
Packing	Standard export package for ocean transportation
Application	All kinds of transformer, reactor,filter,inverter

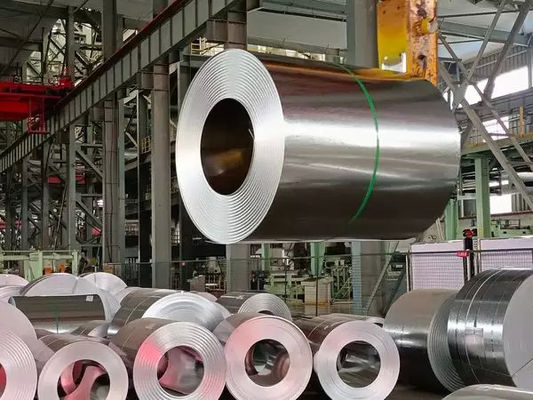

Laser Scribed Silicon Steel Coil 0.35 Mm CRGO B23r090 For Electrical Machinery 0

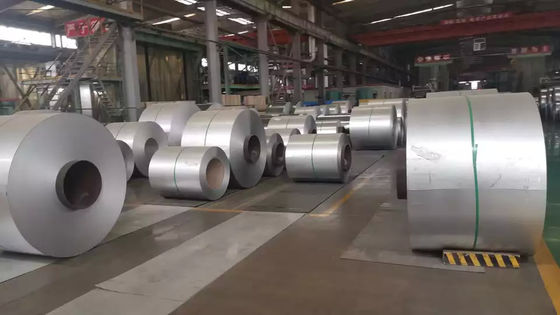

Laser Scribed Silicon Steel Coil 0.35 Mm CRGO B23r090 For Electrical Machinery 1
