Grain Oriented Electrical Steel
Created with Pixso.

508mm CRGO Coil Grain Oriented Silicon Steel B20r070 Laser Scribed Cold Rolled

508mm CRGO Coil Grain Oriented Silicon Steel B20r070 Laser Scribed Cold Rolled

508mm CRGO Coil Grain Oriented Silicon Steel B20r070 Laser Scribed Cold Rolled

Brand Name: Baosteel
Model Number: B20R070
MOQ: 1ton
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000mt/ton
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS,ISO
Name:
Laser Scribed Silicon Steel
Standard:
GB, AISI, ASTM, DIN, JIS
Technique:
Cold Rolled
Trademark:
Baosteel
Weight:
2MT~8MT
Major Manufacturer:
BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Coil ID:
508mm
Application:
All Kinds Of Transformer, Reactor, Filter, Inverter
Packaging Details:
Standard Export Package
Supply Ability:
5000mt/ton
Highlight:

CRGO Coil B20r070

,

Grain Oriented Silicon Steel B20r070

,

508mm CRGO Coil

Product Description

Baosteel CRGO B20r070 Laser Scribed Silicon Steel



Baosteel AE series of new high-efficiency silicon steel products, through technological progress, reduce the energy consumption in the production process, which also reduces the carbon emissions of motor manufacturing, as well as the carbon emissions in the whole life cycle of the motor, forming the best carbon emission path.



PRODUCT DETAILS



Major Manufacturer BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Grade CRGO:
20ZDKH75, B20P075, B20P070, B18R070
B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90, 23QG090, B23R080
27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095
30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105
35Q155, B35G155, 35Z155
CRNGO:
B35A270, B35A250, B35A230, B35A300, 35WW270, 35WW250, 35WW230
B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Nominal thickness 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.5mm
Coil ID 508mm
Weight 2MT~8MT
Standard EN 10106, IEC 60404-8-4, ASTM, DIN, GB, JIS
Form Cold Rolled Strip
Delivery Lead Time 7~15 days after T/T prepayment or L/C date
Packing Standard export package for ocean transportation
Application All kinds of transformer, reactor, filter, inverter

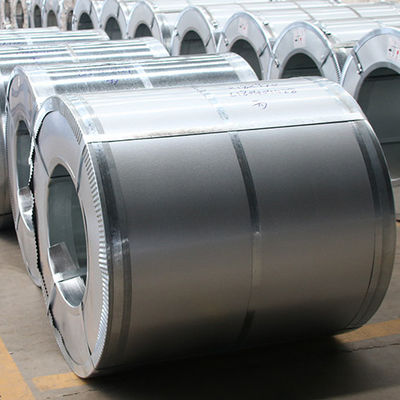

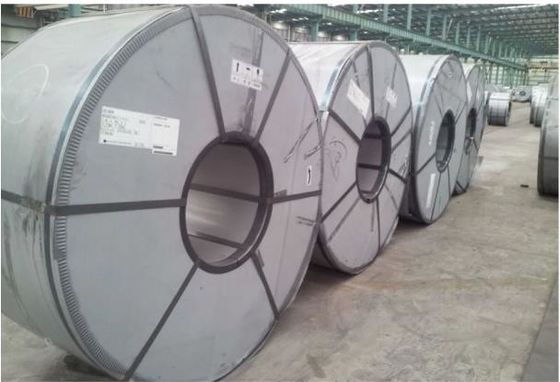

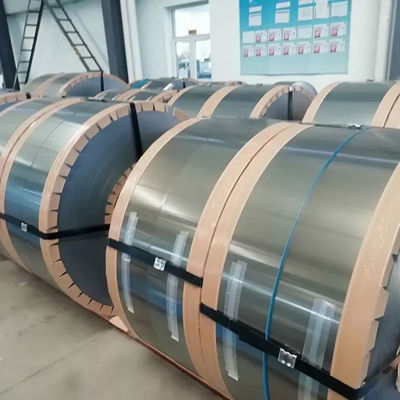

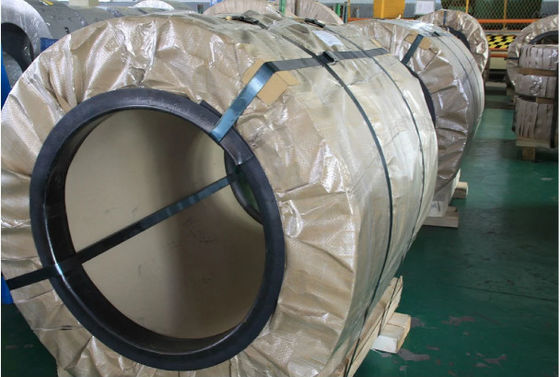

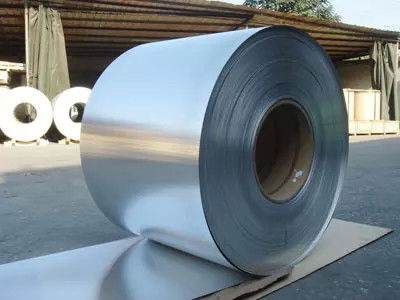

508mm CRGO Coil Grain Oriented Silicon Steel B20r070 Laser Scribed Cold Rolled 0

508mm CRGO Coil Grain Oriented Silicon Steel B20r070 Laser Scribed Cold Rolled 1
