CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard

Name: CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard
Brand: Jiangsu Baowu new Material Co., LTD
SKU: Non-oriented silicon steel
Price: 332.00 USD
Availability: InStock

Brand Name:	Baosteel Wisco Tisco
Model Number:	Non-oriented silicon steel
MOQ:	1 ton
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250 tons/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

GB ISO

Name:

Non-oriented Silicon Steel

Color:

Iron Color

Standard:

ISO

Model Number:

50W800 50W1300

Tickness:

0.5MM

Grade:

50W800 50W1300

Application:

Motor/Brushless Motor

Package:

Wooden Case

Packaging Details:

Wooden pallets and container

Supply Ability:

250 tons/week

Highlight:

50W1300 Non Oriented Electrical Steel

50W800 Electrical Steel Coil

crngo coils ISO Standard

Product Description

CRNGO 50W800 50W1300 Non-Oriented Silicon Steel Coil

Silicon steel has high magnetic sensitivity, and the exciting magnetic current of the iron core is reduced, which also saves electric energy. The high magnetic sense of silicon steel can make the designed maximum magnetic sensor (Bm) high, small core volume, light weight, save silicon steel, wire, insulation materials and structural materials, not only make the loss of motor and transformer and manufacturing costs reduced, but also facilitate assembly and transportation. The motor with circular teeth folded into the core works in operation. Silicon steel plate is required to be magnetic isotropic and made of unoriented silicon steel. The transformer made of strips stacked into iron core or rolled into iron core works in the static state and is made of cold rolled oriented silicon steel with large magnetic anisotropy. In addition, silicon steel is required to have good punching shear, smooth surface and uniform thickness, good insulation film and magnetic time is small.

Grade CRGO:	20ZDKH75, B20P075, B20P070, B18R070 B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90, 23QG090, B23R080 27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095 30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105 35Q155, B35G155, 35Z155
Grade CRNGO:	B35A270, B35A250, B35A230, B35A300, 35WW270, 35WW250, 35WW230 B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Standard:	EN 10106, IEC 60404-8-4, ASTM, DIN, GB, JIS
Thickness:	0.13-4mm
Width:	20mm-1500mm,or according to customer's special request
Weight:	2MT~8MT,or according to customer's special request
Package:	Export Standard Package
Mill MTC:	Supplied before shipment
Inspection:	The Third Party inspection can be accepted,SGS,BV,TUV
Mount Port:	Any port in China
Trade Term:	FOB,CIF,CFR,EXW,etc.
Price Term:	TT or LC at sight
Our Services:	We can cut and bend steel plate according to customer's requriement or drawing,packaging according to customers' request

CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard 0

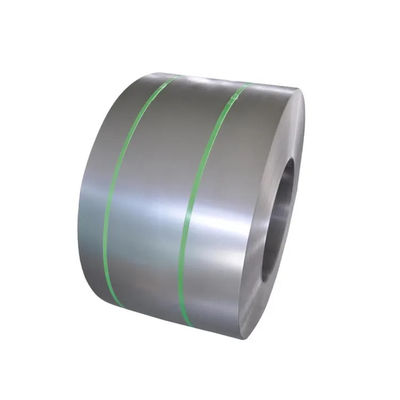

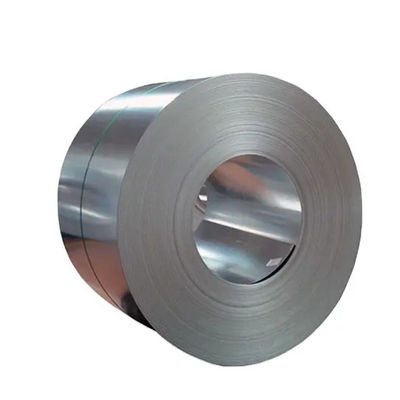

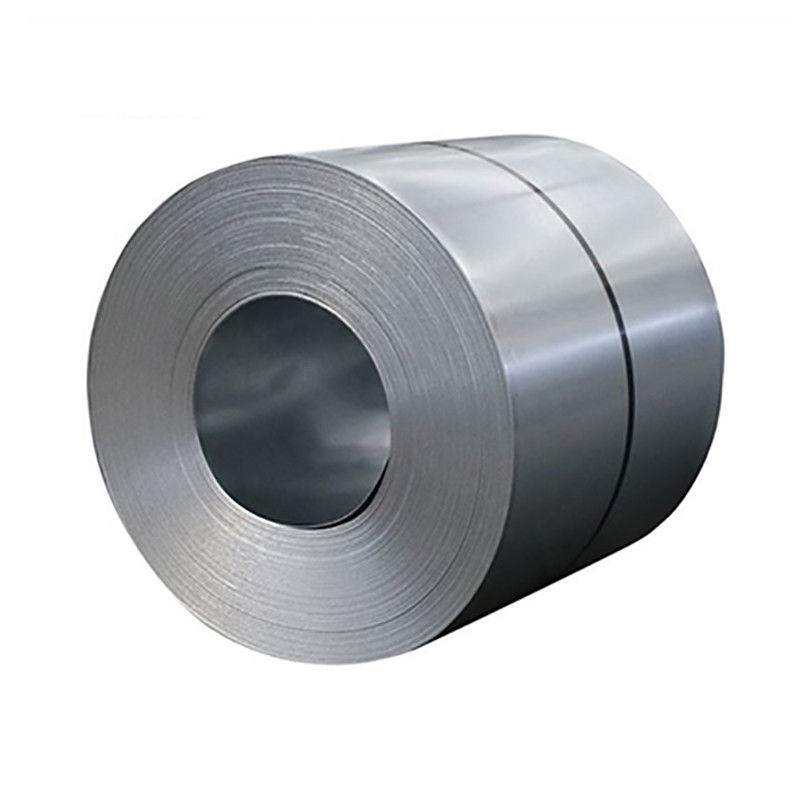

Product Display

CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard 1

CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard 2

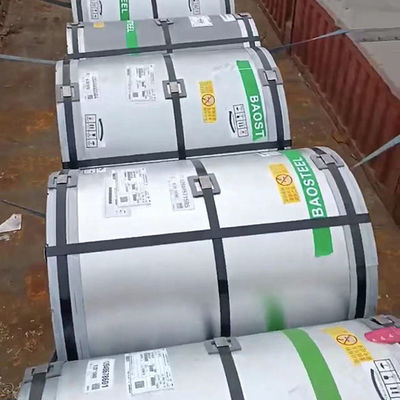

Packing

CRNGO 50W800 50W1300 Non Oriented Electrical Steel Coil ISO Standard 4
Q: Why choose us?
A: Our company have been in steel business for more than ten years, we are internationally experienced,
professional, and we can provide variety of steel products with high quality to our clients
Q: Can provide OEM/ODM service?
A:Yes. Please feel free to contact us for more details discuss.
Q: How is your Payment Term?
A:One is 30% deposit by TT before
production and 70% balance against copy of B/L; the other is Irrevocable L/C 100% at sight.
Q: Can we visit your factory?
A:Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q: Can you providesample?
A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
