Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm

Name: Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm
Brand: Jiangsu Baowu new Material Co., LTD
Price: 332.00 USD
Availability: InStock

Brand Name:	TISCO, BAOSTEEL
MOQ:	1 ton
Price:	to be negotiated
Payment Terms:	L/C, T/T
Supply Ability:	5000 Ton/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, SGS, BV

Name:

Nm 400 Material Wear Resistance Steel Plate For Industry Applications

Standard:

AiSi, ASTM, Bs, DIN, GB, JIS

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Carbon Steel

Thickness:

0.15mm-300mm

Width:

500-2250mm

Steel Grade:

Nm360 Nm400 Nm450 Nm500 Nm550 Nm600

Application:

Industrial Applications, Heavy Machine

Packaging Details:

Standard Sea worthy Packing, Export Sea worthy Packing, Tarpaulin Wrapped Packing, Packing as per customer requirements

Supply Ability:

5000 Ton/Month

Highlight:

nm400 wear resistant steel plate

Hot Rolled Wear Resistance Steel Plate

Industrial Steel Plate 0.15mm

Product Description

Nm 400 Material Hot Rolled Wear Resistance Steel Plate for Industrial Applications

NM400 is one kind of Chinese wear/abrasion resistant steel plates, which is well received in middle east and Africa. An NM400 wear-resistant steel was hot rolled and then the plates were heat-treated by direct quenching and tempering and reheat quenching and tempering techniques, respectively. The impact test was carried out with an instrumented impact tester. The micro-structure and fracture surface were investigated by a combination of optical microscopy, transmission electron microscopy and scanning electron microscopy methods. With high mechanical strength, NM400 is 3 times to 5 times more than common low-alloy steel plates which can significantly improve surface hardness, usually achieved 360 ~ 450HB.

Application

1) Combustion power plant
2) Coal field

3) Cement plant

4) Loading machinery

5) Mine machinery

6) Construction machinery

7) Metallurgical machinery

Product name	AR 400 Wear Plate Low Carbon for Heavy Machine
material	Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E Q420,Q420B,Q420C,Q420D,Q420E,Q460,Q460D Q500C,Q500D,Q500E,Q550C,Q550D,Q550E Q620C,Q620D,Q620E,Q690A,Q690B,Q690C,Q690D,Q690E Q890C,Q890D
Thickness	0.1-300mm.or as your request
Standard	AISI,ASTM,JIS,DIN,GB,SUS
Technique	Hot rolled,Cold rolled
Application	Machine parts, metal components, agricultural machinery, machine tools, ships
Tolerance	Thickness: +/-0.02mm, Width:+/-2mm

Chemical Composition of NM400

Brand	C	Si	Mn	P	S	Cr	Mo	Ni	B	CEV
NM360	≤0.17	≤0.50	≤1.5	≤0.025	≤0.015	≤0.70	≤0.40	≤0.50	≤0.005
NM400	≤0.24	≤0.50	≤1.6	≤0.025	≤0.015	0.4~0.8	0.2~0.5	0.2~0.5	≤0.005
NM450	≤0.26	≤0.70	≤1.60	≤0.025	≤0.015	≤1.50	≤0.05	≤1.0	≤0.004
NM500	≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.20	≤0.65	≤1.0	Bt: 0.005-0.06	0.65

Mechanical Property of NM400

Brand	Thickness mm	Tensile Test MPa			Hardness
		YS Rel MPa	TS Rm MPa	Elongation %
NM360	10-50	≥620	725-900	≥16	320-400
NM400	10-50	≥620	725-900	≥16	380-460
NM450	10-50	1250-1370	1330-1600	≥20	410-490
NM500	10-50	---	----	≥24	480-525

Products

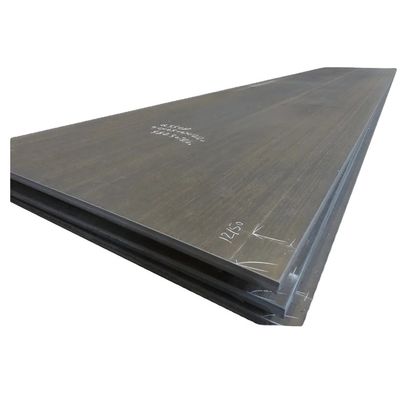

Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm 0

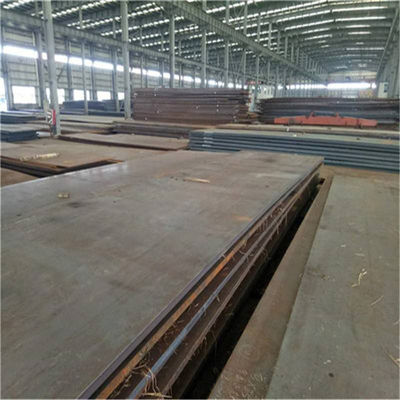

Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm 1

Application
Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm 2

Package

Nm400 Wear Resistant Steel Plate Industrial Steel Plate 0.15mm-300mm 3
