B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers

Name: B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers
Brand: Jiangsu Baowu new Material Co., LTD
SKU: Oriented silicon steel
Price: 332.00 USD
Availability: InStock

Brand Name:	BaoSteel
Model Number:	Oriented silicon steel
MOQ:	1 ton
Price:	Elaborate
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250 tons/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

AiSi

Name:

Silicon Coated Steel Coils

Technique:

Hot Rolled

Surface Treatment:

Coated

Silicon Content:

0.5%-3.0%

Tickness:

0.35 - 0.65 Mm

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Application:

Motor/Brushless Motor

Package:

Wooden

Packaging Details:

Wooden pallets and container

Supply Ability:

250 tons/week

Highlight:

M4 Grain Oriented Electrical Steel

Transformers Grain Oriented Electrical Steel

B27G130 Grain Oriented Electrical Steel

Product Description

B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers

1. INTRODUCTION: Oriented electrical steel, also known as cold-rolled oriented silicon steel, refers to cold-rolled electrical steel containing 2.9% to 3.5% Si, and the crystal structure of the steel plate has certain rules and directions. Oriented electrical steel is an indispensable soft magnetic material in the power industry, mainly used in transformers, rectifiers, reactors and large motors and other industries.

2. APPLICATION:

Varieties	Conventional type	High induction type	Domain refined high induction type
Large motors	✶	✶
Large transformers	✶	✶	✶
Medium and small transformers	✶	✶	✶
Distributing transformers	✶	✶
Voltage regulator	✶	✶
Reactor and magnetic amplifier	✶	✶	✶
IF transformer		✶
Mutual inductor	✶	✶
TV transformer	✶	✶
Radio transformer	✶	✶
Radio broadcast transformer		✶

3.Standard dimensions of products:

Available thickness (mm)	Available width range (mm)	Inside diameter (mm)
0.23,0.27,0.30,0.35	900~1200	508

4.Dimensional and shape tolerances:

Width (mm)	Thickness (mm)	Thickness tolerance (mm)	Longitudinal thickness tolerance (mm)	Traverse thickness tolerance (mm)	Width tolerance (mm)	Flatness (%)	Camber within 2m (mm)
900~1200	0.23	±0.02	≤0.03	≤0.02	0~+2	≤1.5	≤1.0
	0.27	±0.03
	0.30
	0.35

5.Standard electromagnetic properties:

Type	Grade	Thickness (mm)	Density (kg/dm3)	Max. Core loss (W/kg)	Min. Induction (T)
Conventional G type	B23G110	0.23	7.65	1.10	1.80
	B27G120	0.27	7.65	1.20	1.80
	B30G120	0.30	7.65	1.20	1.80
	B30G130			1.30	1.80
	B30G140			1.40	1.80
	B35G135	0.35	7.65	1.35	1.80
	B35G145			1.45	1.80
	B35G155			1.55	1.80
High induction P type	B23P085	0.23	7.65	0.85	1.87
	B23P090			0.90	1.87
	B23P095			0.95	1.87
	B27P090	0.27	7.65	0.90	1.88
	B27P095			0.95	1.88
	B27P100			1.00	1.88
	B30P095	0.30	7.65	0.95	1.88
	B30P100			1.00	1.88
	B30P105			1.05	1.88
	B30P120			1.20	1.88
	B35P115	0.35	7.65	1.15	1.88
	B35P125			1.25	1.88
	B35P135			1.35	1.88
Domain refined high induction R type	B23R080	0.23	7.65	0.80	1.87
	B23R085			0.85	1.87
	B23R090			0.90	1.87
	B27R085	0.27	7.65	0.80	1.87
	B27R090			0.85	1.87
	B27R095			0.90	1.87

Note: a. Detecting basis GB/T3655-2008(G type and P types),GB/ T13789-2008(R type b. G type and P type test specimens are sheared to the rolling direction and annealed for stress relieving c. P17/50 means core loss of sample per kg at max. magnetic induction 1.7T and frequency 50Hz; d. B8 means magnetic induction corresponding to 800A/m magnetic field intensity.

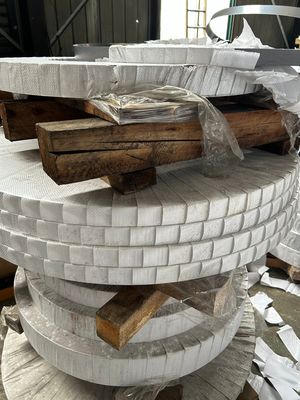

B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers 0

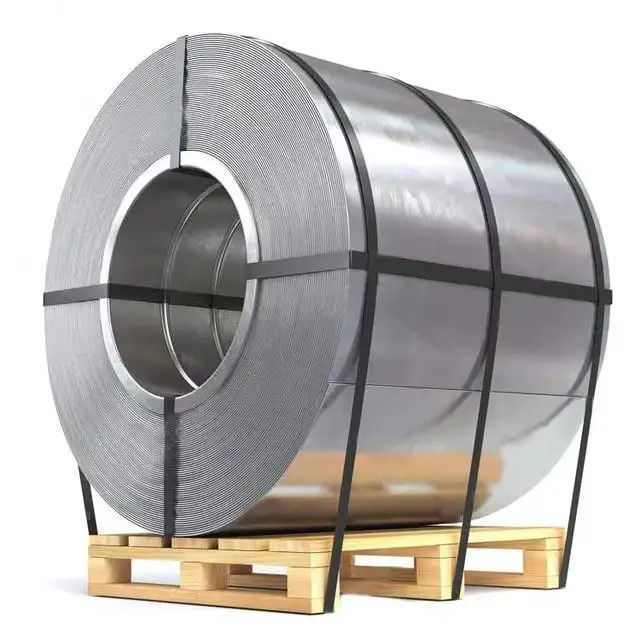

B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers 1

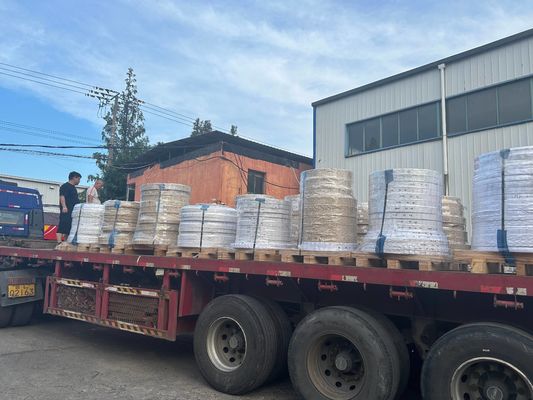

B27G120 B27G130 M4 Grain Oriented Electrical Steel for Transformers 2
